Package Boilers, Watertube Boilers, Utility Boilers

Over

0

Firetube boilers supplied in 60 years

Engineered to be more efficient, more economical, more eco-friendly.

From tough conditions in the mining industry to mission critical operations in hospitals, our boilers are designed and built to perform for a lifetime. Our business is based on internationally competitive technology, price and delivery. We provide the full spectrum of products and services to our customers in South Africa and many export markets.

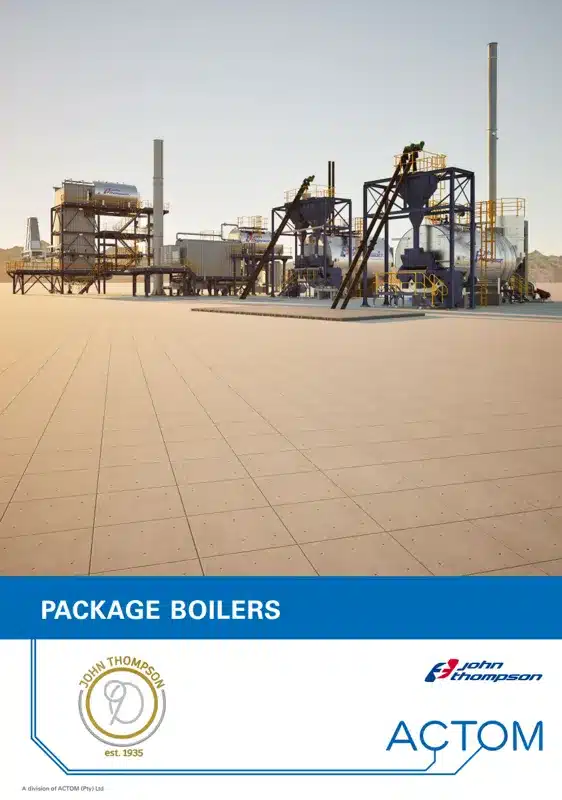

Package Boilers

During the past 60 years we have supplied over 4 000 firetube boilers to customers in many industries in Africa, Europe, South-East Asia, the Middle East, South America and Australia.

All of our boilers now incorporate spiral-tube technology, developed in our test centre. This enhances thermal efficiency and reduces fuel consumption and CO2 emissions.

The boilers are designed and manufactured in compliance with the latest international standard, EN12953.

An Approved Inspection Authority inspects and certifies each piece of equipment before dispatch.

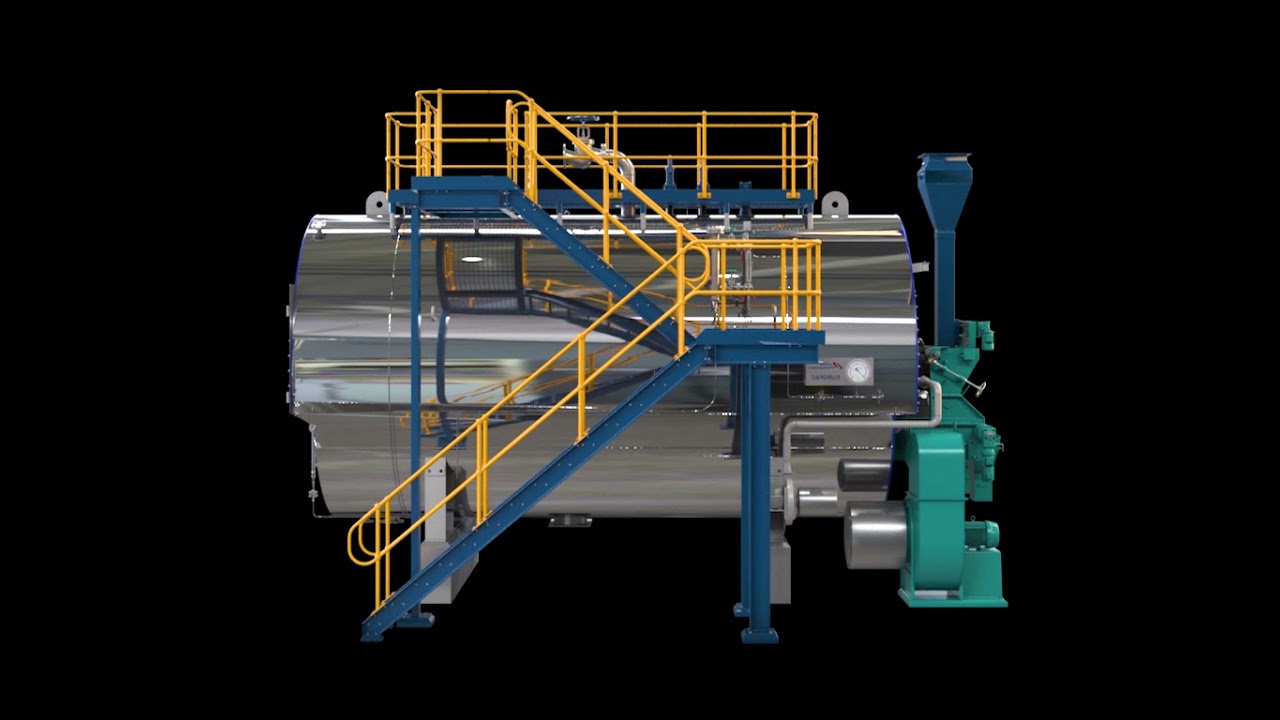

Thompson Europac Coal-Fired

Designed and manufactured to latest European Standard (EN12953) for a design pressure of 1 100 kPa (Designs also available up to 2 000 kPa)
Three-pass conventional firetube wet-back design with spiral tubes in both tube passes
Flanged end-plates in place of flat end-plates on selected boilers eliminate tee-butt weld joints. This reduces susceptibility to corrosion fatigue and extends boiler life
Latest spiral-tube technology with heat transfer up to 100% greater than normal plain tubes reduces gas outlet temperature to only 15°C above steam saturation temperature
Thermal efficiency of 84% with GCV 27 500 kJ/kg provides 10 kg steam per kg coal
MICROPAC energy management system increases efficiency and reduces operating and maintenance costs
Variable-speed drives for FD fan, ID fan, feed-pumps and stoker reduce power consumption
Total package incorporates chaingrate stoker, feed-water pumps and controls, control panel, grit collector, fans and all necessary valves and fittings
Quality system is accredited to ISO 9001:2015 and all boilers are inspected and certified by an Approved Inspection Authority before dispatch.

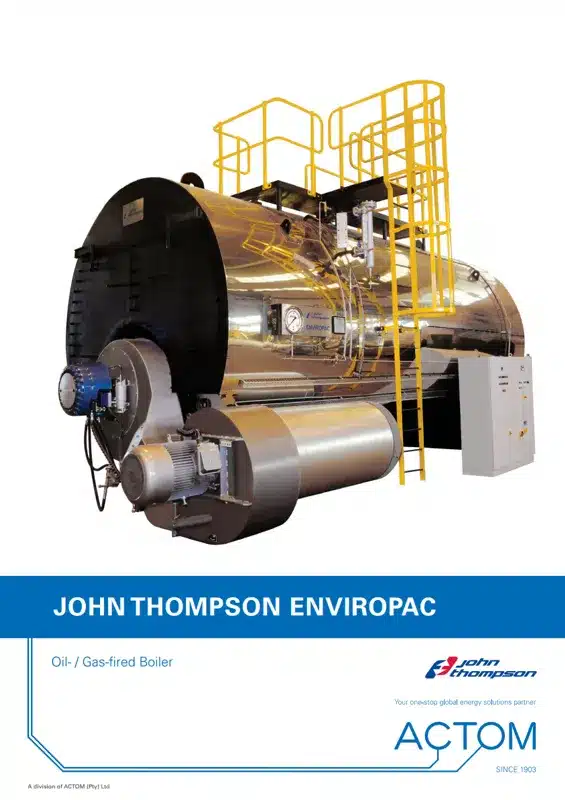

Thompson Enviropac Oil/Gas-Fired

Designed and manufactured to latest European Standard (EN12953) for a design pressure of 1 100 kPa (Designs also available up to 2 500 kPa)
Three-pass conventional firetube wet-back design with spiral-tubes in both tube passes
Flanged end-plates in place of flat end-plates on selected boilers eliminate tee-butt weld joints. This reduces susceptibility to corrosion fatigue and extends boiler life
Latest spiral-tube technology with heat transfer up to 100% greater than normal plain tubes reduces gas outlet temperature to only 15°C above steam saturation temperature
High thermal efficiency of up to 91.5% at rated output reduces fuel consumption and CO₂ (An economiser can be provided for ultra-high efficiency)
Combustion equipment to suit a wide range of oil viscosities and gas compositions
Total package incorporates burner, fan, feed-water pump and controls, control panel and all necessary valves and fittings
Twin burner boilers are available for boiler ratings above 25 000 kg/h
Quality system is accredited to ISO 9001:2015 and all boilers are inspected and certified by an Approved Inspection Authority before dispatch.

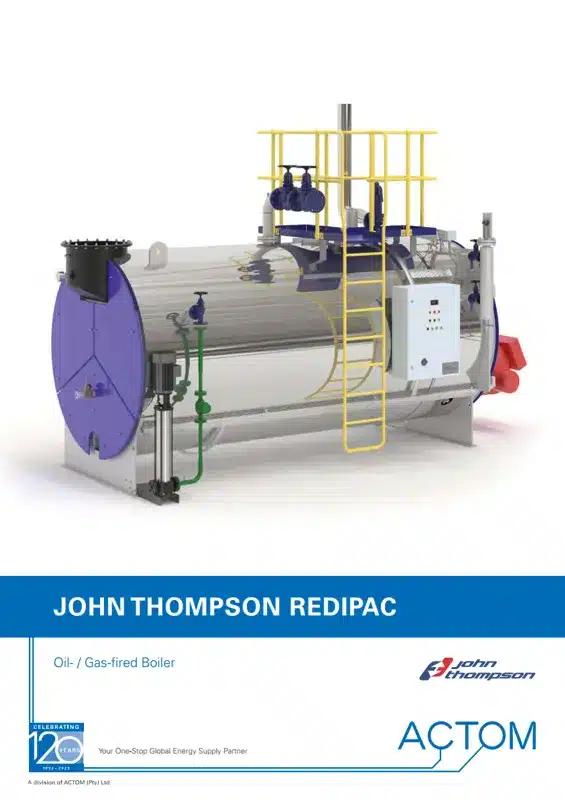

Thompson Redipac Oil/Gas-Fired

Three-pass, reverse-flame, wet-back design with a low furnace rating
High thermal efficiency of up to 90% when oil-fired and 89% when gas-fired
Combustion equipment to suit a wide range of oil viscosities and gas compositions
Designed and manufactured to latest European Standard (EN12953) for a design pressure of 1 100 kPa. (Designs also available up to 3 000 kPa)
Total package incorporates burner, fan, feed-water pump and controls, control panel and all necessary valves and fittings
Quality system is accredited to ISO 9001:2015 and all boilers are inspected and certified by an Approved Inspection Authority before dispatch.

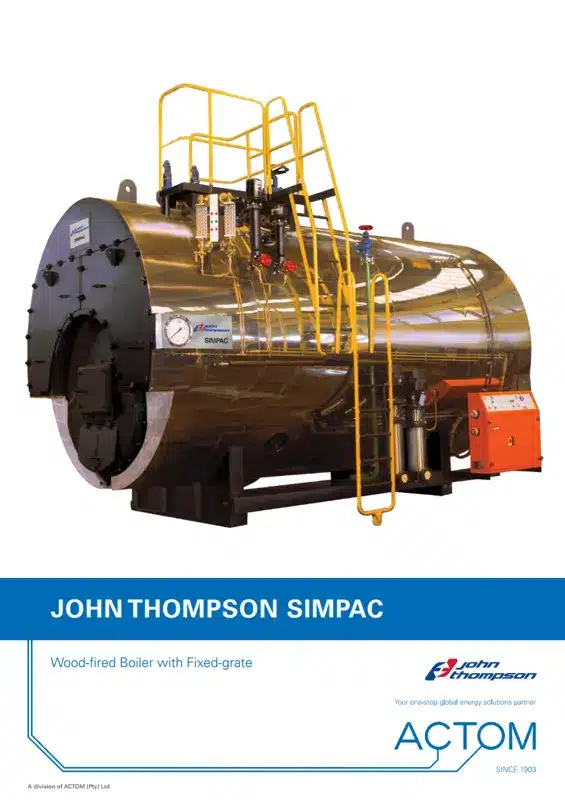

Thompson Simpac Wood-Fired

Three-pass, conventional, wet-back design incorporating latest spiral-tube technology with heat transfer up to 100% greater than normal plain tubes
High thermal efficiency of 85% with NCV 15 800 kJ/kg
Boiler rating can be achieved with wood moisture content up to 25%
Fixed-grate of robust construction with high quality Meehanite cast iron grate bars for long life
Designed and manufactured to latest European Standard (EN12953) for a design pressure of 1 100 kPa. (Designs also available up to 2 500 kPa)
Total package incorporates a fixed-grate, feed-water pumps and controls, control panel, ID fan with variable speed control, and all necessary valves and fittings
Quality system is accredited to ISO 9001:2015 and all boilers are inspected and certified by an Approved Inspection Authority before dispatch.

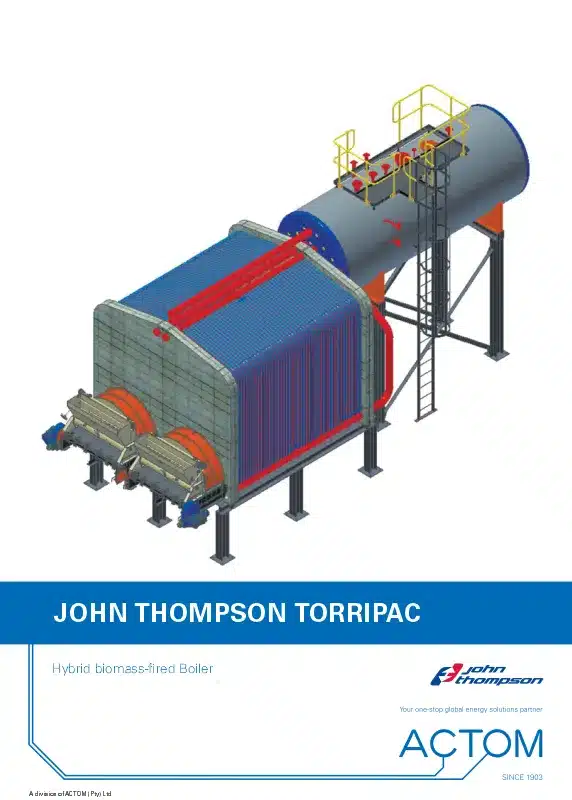

Thompson Toripac Biomass-Fired

John Thompson’s Torripac range of new generation hybrid biomass-fired boilers was developed in response to the growing global trend towards greater use of environmentally-friendly fuel sources for the generation of process steam.

Fuels Burnt

Wood pellets, woodchips, wood-pucks, grape pomace, nutshells, sunflower seed husks, corncobs, dried hops and torrefied biomass.

Boiler Design

The Torripac conforms with the European Standards design codes for watertube and firetube boilers.

The twin stoker models combine an external water-cooled furnace with a firetube boiler to effectively combust biomass with a moisture content of up to 40%, or other suitable solid fuels.

In the single stoker models, the water-cooled furnace is integral to the firetube boiler.

The combustion system comprises the well proven Thompson Triumph chaingrate stoker, and a vibrating or step grate, depending on the fuel being burned.

Over-fire air and secondary air is strategically introduced into the furnace to optimise the combustion process. Water-cooled baffles inside the furnace maximise heat transfer surface. The baffles also guide the flow of gas to extend residence time in the furnace.

Efficiency is enhanced in the firetube boiler through the use of our spiral-tube technology.

The Torripac boiler has been designed as easily transportable modules that are simply assembled with limited on-site welding. The Torripac is fully compatible with our standard range of ancillary equipment.

Steam Output

Steam output from the Torripac boiler range is from 1 000 kg/h to 13 000 kg/h. Design pressures of up to 32 bar are available to be used in conjunction with saturated steam screw expanders for cogeneration applications. For higher power outputs, superheaters can be incorporated into the design for use with steam turbines.

Quality system is accredited to ISO 9001:2015 and all boilers are inspected and certified by an Approved Inspection Authority before dispatch.

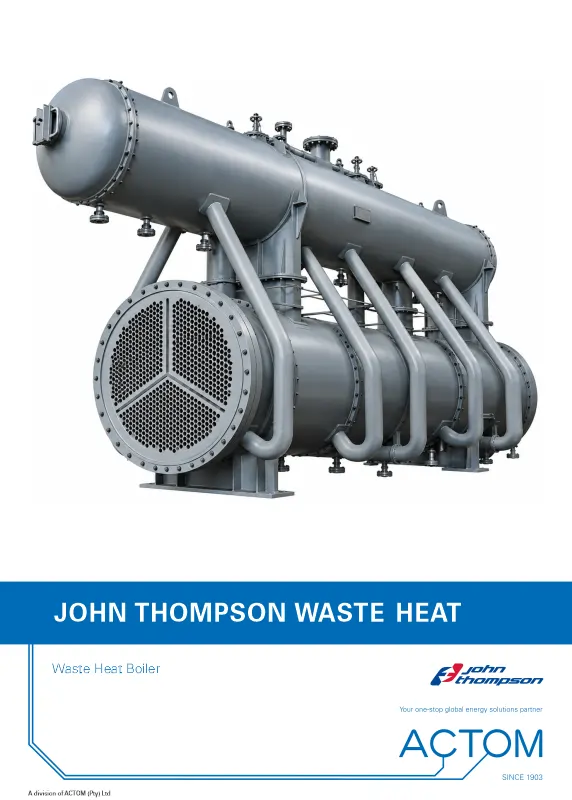

Waste-Heat Boilers

Waste heat minimisation and recovery are two of the most effective ways to reduce energy costs and greenhouse gas emissions. Reducing heat loss not only lowers energy and maintenance costs, but can also minimise emissions of air pollutants and improve the productivity of furnaces, ovens and boilers.

Quality system is accredited to ISO 9001:2015 and all boilers are inspected and certified by an Approved Inspection Authority before dispatch.

Micropac and Lamtec Control Systems

The John Thompson Micropac Boiler Management System is supplied as standard equipment with Europac coal-fired boilers. It can also be retrofitted on existing boilers. Customer feedback confirms that installation of the Micropac has been a major factor in reducing coal consumption from 10% to 30% when compared with some older generation combustion systems.

Feed-water flow meters are included with all boilers.

Boiler Controls

Boiler Instrumentation

Boiler pressure gauge
Boiler pressure transmitter
Water level gauge
Water level transmitter
Steam flow meter with mass flow correction
Feed-water flow with integrator
Feed-water temperature
Exit gas temperature gauge
Exit gas temperature transmitter

Stoker

Ignition arch temperature probe and alarm
Hopper burn-back probe and alarm
Rear under-grate temperature probe and alarm
Motorised under-grate dampers
Electronic shear pin for stoker drive
Manual guillotine door height adjustment
Fuel bed height monitoring

Sootblowers (optional)

Motorised soot blowers c/w auto steam valve

Panel Indicators (Touch Screen Interface)

Steam flow
Water flow*
ID fan speed
FD fan(s) speed
Stoker(s) speed
Water level
Front & rear under-grate damper positions
Feed-pump speed
Status/alarms
ID fan run/trip
FD fan(s) run/trip
Stoker(s) run/trip
Swinging chute(s) run/trip
Feed-pump 1 run/trip
Feed-pump 2 run/trip
Steam pressure high
Water level low
Water level low low
Water level high
Gas temperature high
Stoker torque high
Operator notification (checks/service/calibration)
Communication card to export data

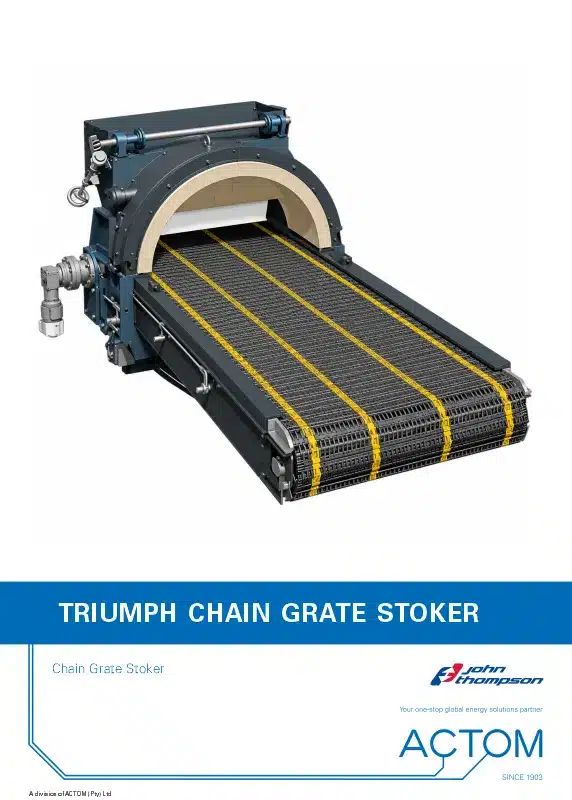

Triumph Chaingrate Stoker

Swinging chute for uniform coal distribution
Over-fire air to enhance combustion
Planetary gearbox with electronic shear pin protection
Motorised under-grate dampers for optimal air zoning
Robust design and construction for long life
All cast iron components are produced at the John Thompson foundry under the Meehanite® process - the international benchmark for guaranteed quality
Combustion efficiency 97% for Pea size coal GCV 27 500 kJ/kg
Combustion efficiency 93% for Small size coal GCV 25 500 kJ/kg
Suitable for boiler ratings from 1 800 kg/h to 10 500 kg/h
Suitable for brickset furnace ratings from 1 400 kW to 8 000 kW
Biomass fuels that can be burnt include: wood pucks, wood chips, wood pellets, grape pomace pellets, nut shells, torrified biomass and sunflower husks
Quality system is accredited to ISO 9001:2015 and all boilers are inspected and certified by an Approved Inspection Authority before dispatch.
Full range of support services available

Industrial Watertube Boilers

Throughout sub-Saharan Africa, customers in major industries such as mining and hospitals turn to John Thompson for new boilers and combustion equipment.

They also entrust the repair and maintenance of such key equipment to our expertise.

Our service further includes capacity and efficiency improvements to older boilers, supply of original equipment manufacturer (OEM) spares, reliability studies and metallurgical services.

Industries served: mining, hospitals, sugar, food and beverage, chemical, petrochemical, steel, metallurgical, pulp and paper, textiles and many others.

Learn moreabout our Industrial Watertube Boilers

Typical Bagasse-Fired Watertube Boiler

Mhlume Boiler No. 7
100 t/h steam
31 bar, 400 °C
Fuel: baggasse/coal
400 t/h pre-boiler station

Typical Eckrohrkessel Cornertube Boiler

Caltex refinery
120 t/h steam
45 bar, 450 °C
Fuel: HFO, Gas or vacuum residual

Utility Boilers & Auxiliaries

We service, maintain, repair and retrofit utility and power boilers. Our services cover more than 30 utility boilers in Eskom and municipalities.

We also manufacture and supply boiler components. Our construction teams undertake installation and construction projects on all power and utility boilers.

We maintain and refurbish coal mills, burners, ducting, bunkers and PF piping at various utility boiler units.

Through our technology partners, we bring you a world of experience in clean air solutions. We have installed fabric filter plant on coal-fired utility boilers from 200 to 600 MW capacity.

Our unparalleled level of expertise serves our customers to remain particulate, gas and heavy metal emissions compliant.

Learn Moreabout our Environmental Solutions

Boilers

Outage maintenance of boilers pressure parts
Boiler retrofits and upgrades
Analysis of boiler pressure part failures and metallurgical inspection, including root cause analysis
Manufacturing and supply boiler components such as superheater elements, economiser elements, wall panels, burner tube nests, various headers, tube shields and burners
Maintenance of ancillary equipment such as ducting, dampers, submerged scrapper conveyors and PF burners
Construction of boilers, piping, structures, pulverised fuel systems, air and flue gas ducting
Supply of boiler tubing

HP Piping

Design, manufacture and construction of entire HP piping systems
Stress analysis of HP piping systems
Manufacturing and supply of HP piping components
HP piping inspections, maintenance and modifications
Supply of HP piping and fittings

Coal Mills

Complete refurbishment of vertical spindle and tube mills
Day-to-day and outage maintenance of vertical spindle and tube mills
Day-to-day and outage maintenance of PF piping
